Applications
Agriculture
- Spot heating in large sheds.
horticulture
- Spot heating in work areas.
industry
- Spot heating in workshops, transit sheds and warehouses.
- Warming up and defrosting machines.
Construction
- Spot heating on work sites.
VAL
Technical specifications

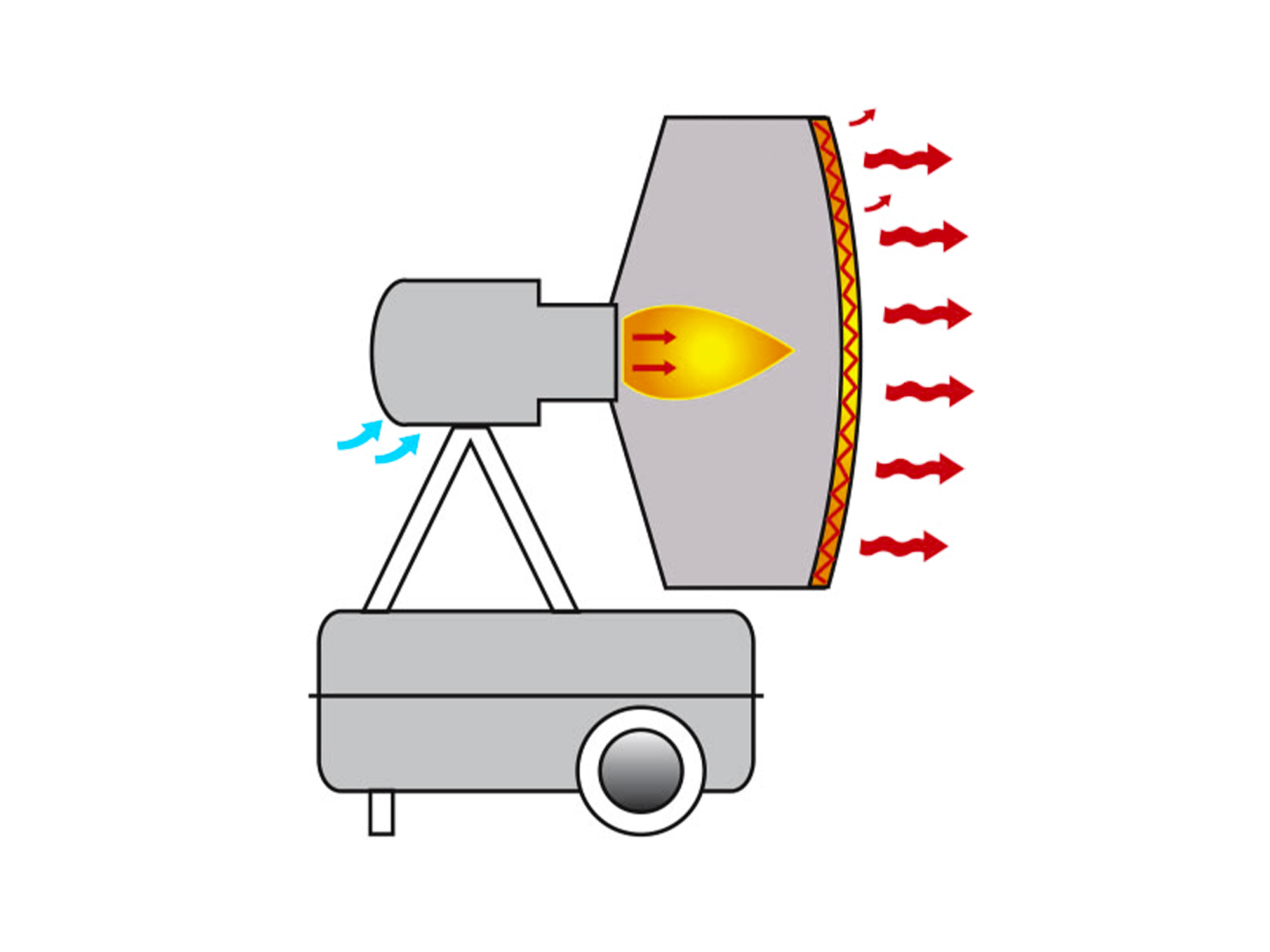

Working principles
- Odourless without air fl ow.
- Fixed radiation temperature circa 150°C at 70 cm (20°C at 3 m).
- Spot heating (and limited space heating).
Benefits
- Odorless.
- Personal (and spatially limited) heat.
- No air movement.
features
- High pressure burner with 15 sec. prepurge control system and 180 sec. postpurge.
- Photocell fl ame control.
- Combustion chamber of fi bre ceramic.
- Thermostat operation is possible.
- 230V/50Hz connection.
- Room ventilation is required.
- Mobile framework. (DAYSTAR portable).
- VAL EPX with oversized tank for 20 burning hours (low) and 15 burning hours (high).
- VAL EPX equipped with overvoltage detector, integrated thermostat en larger radiation disc for 20% further en wider radiation.
- VAL 6-1 STEP and VAL 6-2 STEP may be inclined both vertically as well as horizontally.
- VAL 6-2 STEP with a 2 step burner.
- VAL 6 KB with oversized tank for 16 burning hours.
- Oil preheating set VAL 6 (optional).
- 45° Vertical inclination infra-red heat screen.
- High pressure burner.
- Tank for 10 hours burning duration, (VAL 6 EPX 20 hours burning duration (low) and 15 hours burning duration (high), VAL 6 KB 16 hours burning duration).
- Odourless, personal (and limited space) heating, no air fl ow.
Model
VAL 6 1-STEP
Capacity (kW)
40
Approx. fuel cons. oil (l/hr)
3,7
Tank capacity (l)
40
Power consumption 230V (Amps)
0,25
Thermostat connection
YES
Model
VAL 6 KB
Capacity (kW)
40
Approx. fuel cons. oil (l/hr)
3,7
Tank capacity (l)
60
Power consumption 230V (Amps)
0,25
Thermostat connection
YES
Model
VAL 6 EPX
Capacity (kW)
40
Approx. fuel cons. oil (l/hr)
3,7
Tank capacity (l)
58
Power consumption 230V (Amps)
0,25
Thermostat connection
YES
Model
VAL MIDI
Capacity (kW)
33
Approx. fuel cons. oil (l/hr)
3,1
Tank capacity (l)
35
Power consumption 230V (Amps)
0,25
Thermostat connection
NO
| Article | Model | Capacity (kW) | Approx. fuel cons. oil (l/hr) | Tank capacity (l) | Power consumption 230V (Amps) | Thermostat connection | PU | ||||

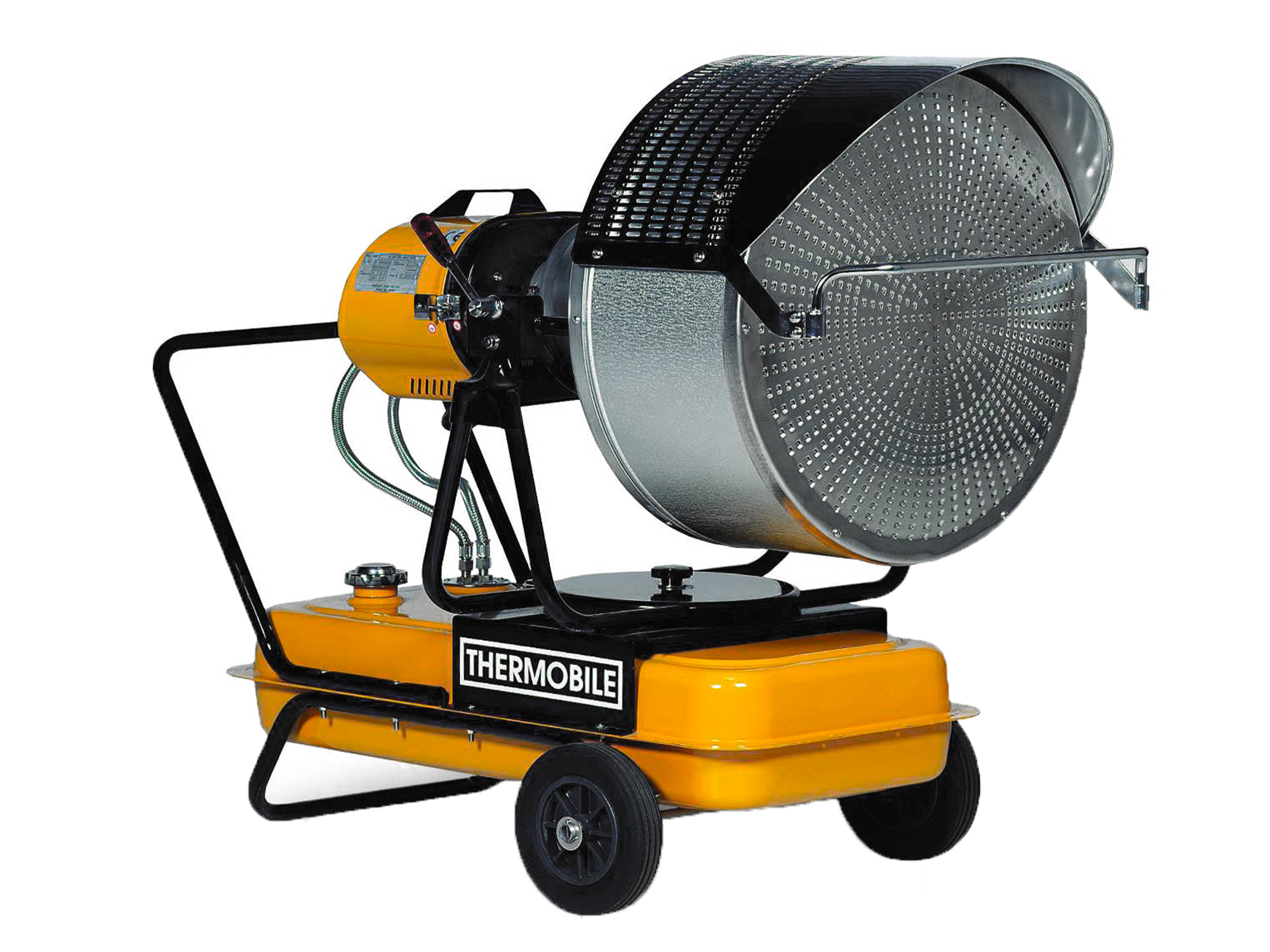

| 40.106.200 | VAL 6 1-STEP | 40 | 3,7 | 40 | 0,25 | YES | 1 | ||||
Model VAL 6 1-STEP Capacity (kW) 40 Approx. fuel cons. oil (l/hr) 3,7 Tank capacity (l) 40 Power consumption 230V (Amps) 0,25 Thermostat connection YES | |||||||||||
| 40.106.100 | VAL 6 KB | 40 | 3,7 | 60 | 0,25 | YES | 1 | ||||
Model VAL 6 KB Capacity (kW) 40 Approx. fuel cons. oil (l/hr) 3,7 Tank capacity (l) 60 Power consumption 230V (Amps) 0,25 Thermostat connection YES | |||||||||||
| 40.106.400 | VAL 6 EPX | 40 | 3,7 | 58 | 0,25 | YES | 1 | ||||
Model VAL 6 EPX Capacity (kW) 40 Approx. fuel cons. oil (l/hr) 3,7 Tank capacity (l) 58 Power consumption 230V (Amps) 0,25 Thermostat connection YES | |||||||||||
| 40.106.050 | VAL MIDI | 33 | 3,1 | 35 | 0,25 | NO | 1 | ||||
Model VAL MIDI Capacity (kW) 33 Approx. fuel cons. oil (l/hr) 3,1 Tank capacity (l) 35 Power consumption 230V (Amps) 0,25 Thermostat connection NO | |||||||||||
